Case Study · 2025

MICHAEL KORS Mirrored Stainless Steel Display Fixture for Visual Merchandising

100% Mirror-Finish Stainless Steel Display Fixtures for Luxury Visual Merchandising

Client
Michael Kors
Discipline
Mirror-Polished Stainless Steel Fabrication
Location
Global Retail Windows
Year
2025
michael kors mirror polished stainless steel window display fixture
01 — The Challenge

Where the project began

Michael Kors briefed a window concept built around a single, uncompromising material: mirror-polished stainless steel. No secondary props, no mixed finishes — the entire visual impact had to come from one surface.

The difficulty was twofold. First, a true mirror finish is unforgiving: any polishing line, weld mark, or edge burr is immediately visible under retail lighting, so the fabrication tolerance had to be zero-defect. Second, a cold mirrored surface can read as sterile under strong store lighting, so the brief called for a way to soften that reflection without diluting the minimalist concept — while every fixture still had to be custom-sized to fit windows and atrium spaces that vary from store to store.

From sketch to proposal

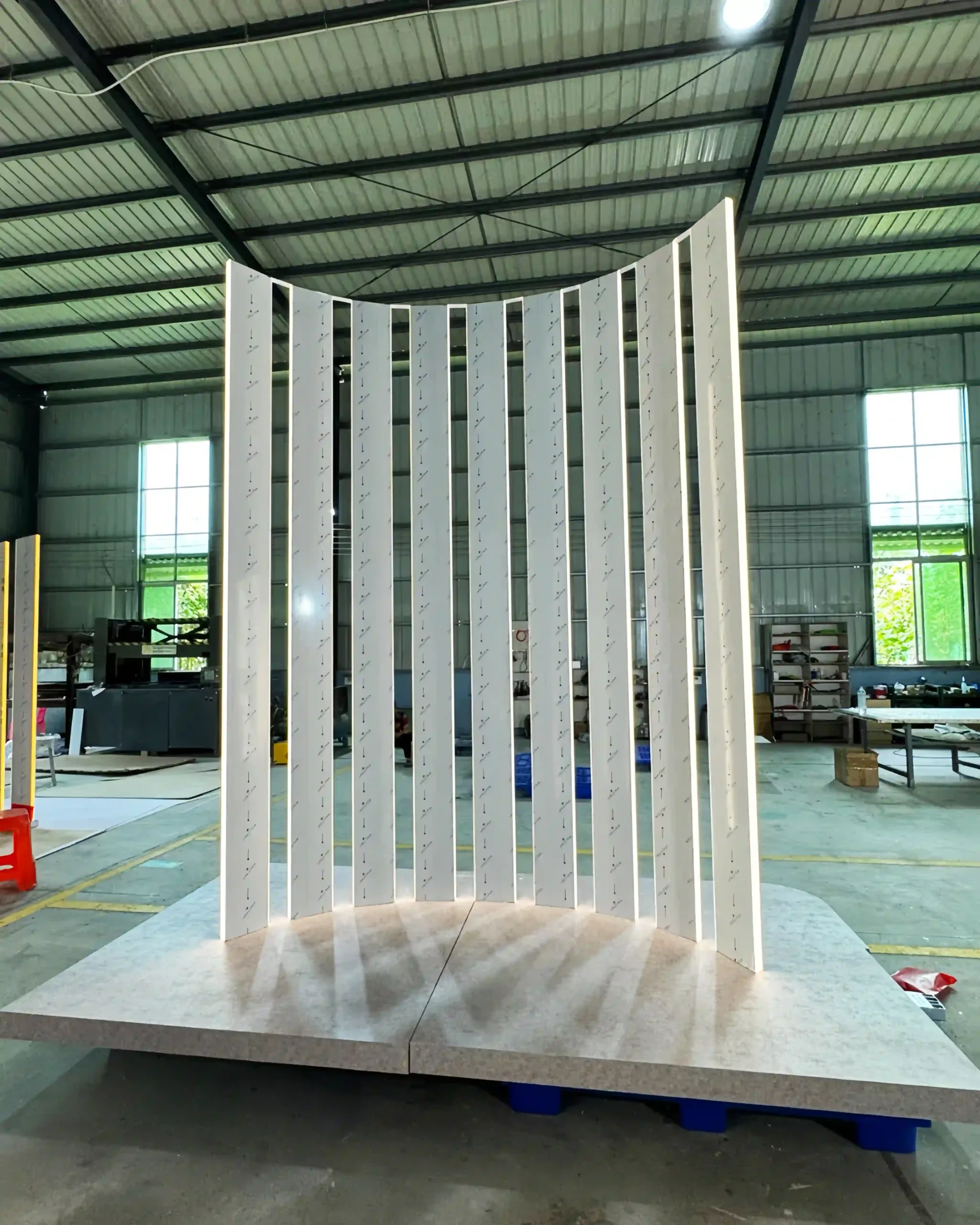

The design centers on a floor-to-ceiling stainless steel “fence” panel — a continuous run of mirror-polished steel that anchors each window from base to ceiling as a fixed architectural backdrop. Panel height and curvature are custom-drawn for every individual window and atrium opening, creating a wave-like silhouette that reads as one continuous gesture rather than a stack of separate pieces.

A fine LED strip is recessed along each panel edge. The warm light effect neutralizes the coldness of a plain steel mirror without ever hiding it, letting the reflection stay sharp while the overall space feels inviting rather than clinical. Matching mirror-finish stainless steel podiums are placed in front of the fence panels, tying the whole vignette together into a single, high-luxury display language that reinforces the Michael Kors brand identity.

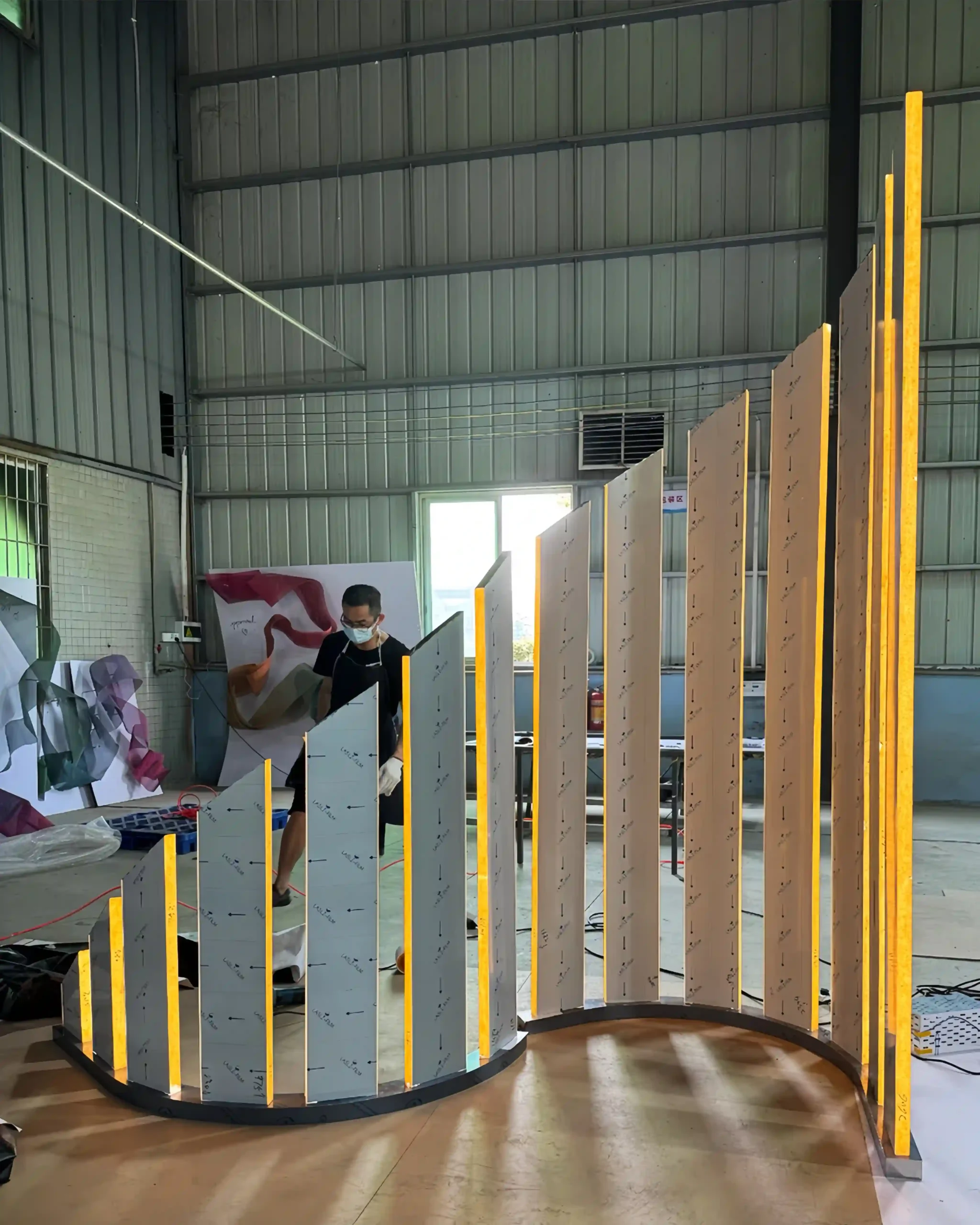

led edge lighting recessed in stainless steel display panel
Materials Craft
Tap to switch

– Fence panels: mirror-polished 304 stainless steel, seamless finish, zero polishing marks or edge burrs

– Edge lighting: recessed LED strip, warm-white temperature, fully integrated into the panel edge

– Mounting system: floor-to-ceiling track and groove, engineered per window for simple on-site installation

– Podiums: matching mirror-finish stainless steel, paired with the fence panels for a unified display line

– Packaging: each fixture individually sized and flat-packed per store for direct single-site dispatch

– Custom fence height and curvature drawn for every individual window and atrium footprint

– Zero-defect mirror polish — no visible seams, polishing lines, or sharp edges

– Recessed LED edge lighting to soften reflection while preserving mirror clarity

– Floor-to-ceiling track system engineered for straightforward on-site assembly

– One fixture concept, fully adaptable across varying store and window

03 — The Craft

The making

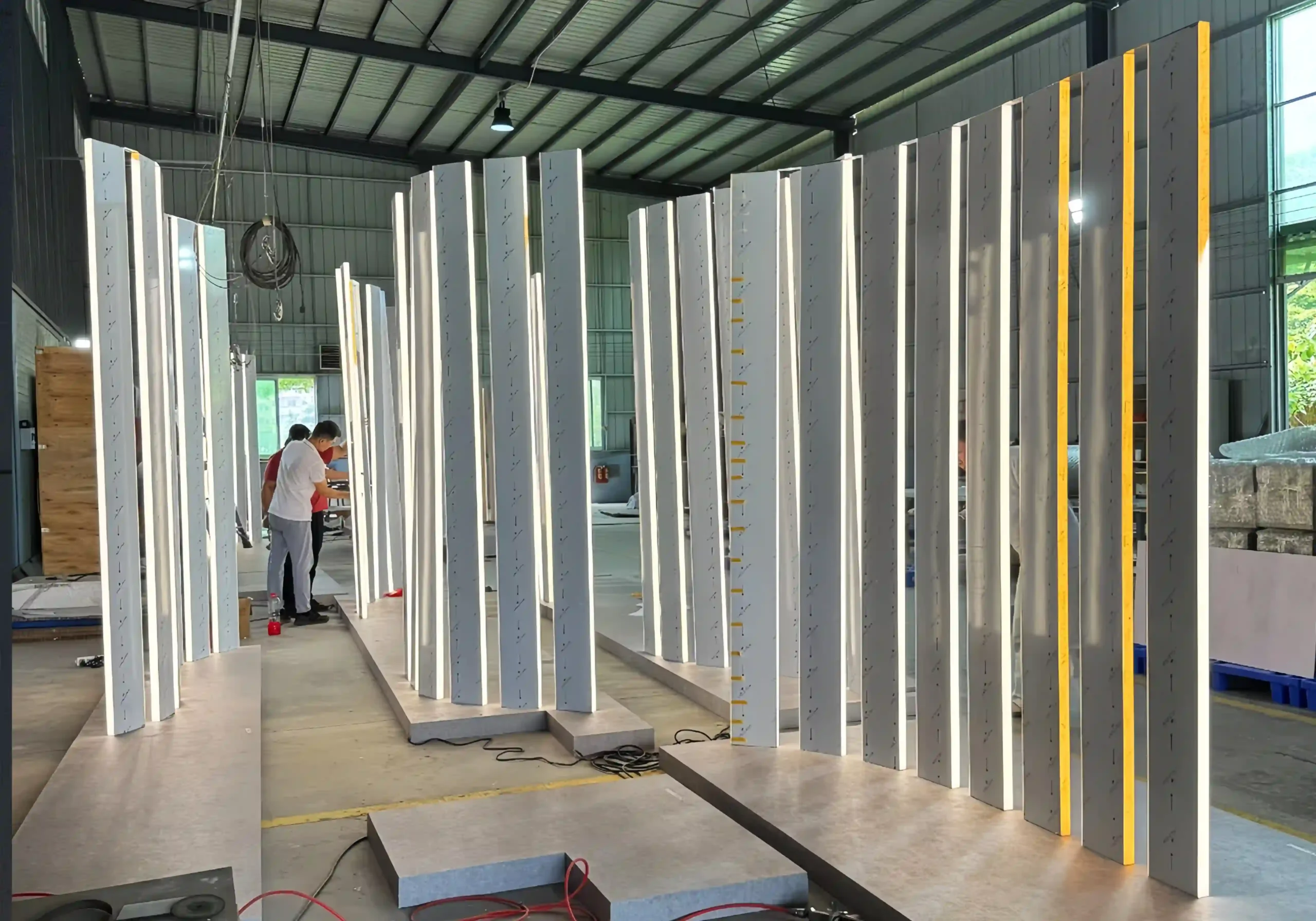

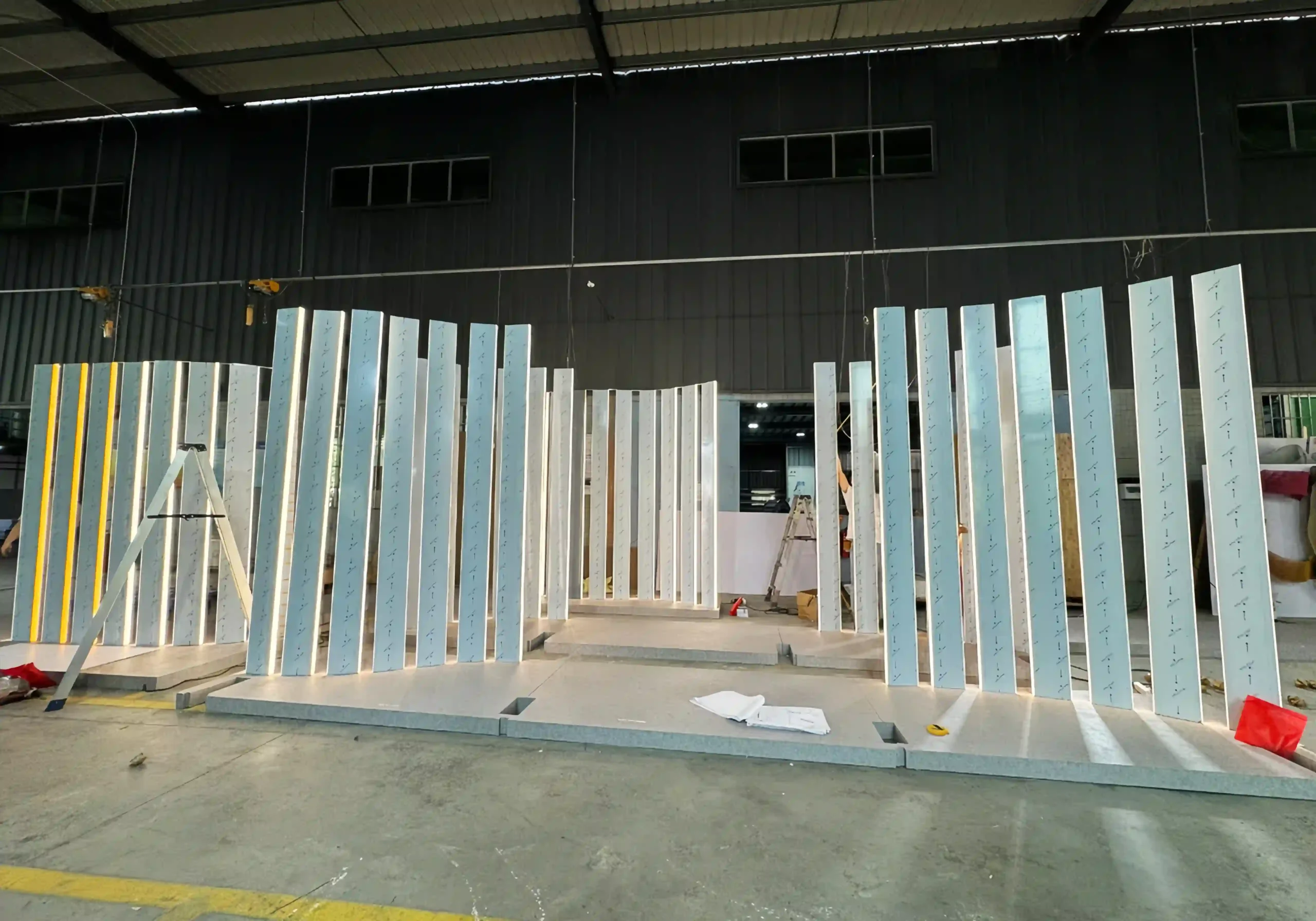

Every fence panel starts as a raw stainless steel sheet, CNC-cut and precision-welded to the exact height and curve profile drawn for its window. Seams are ground and finished by hand until they disappear, then the entire surface is mirror-polished to a true reflective grade — no visible polishing lines, no burrs on any edge, 100% mirror finish end to end.

An LED channel is machined directly into the panel edge before final assembly, so the warm-light strip sits flush and fully integrated rather than bolted on as an afterthought. A floor-to-ceiling track and groove system is engineered into the back of each panel, allowing store teams to slot the fixture into place on site with simple, tool-light installation rather than a full structural build-out.

04 — The Outcome

The final presentation

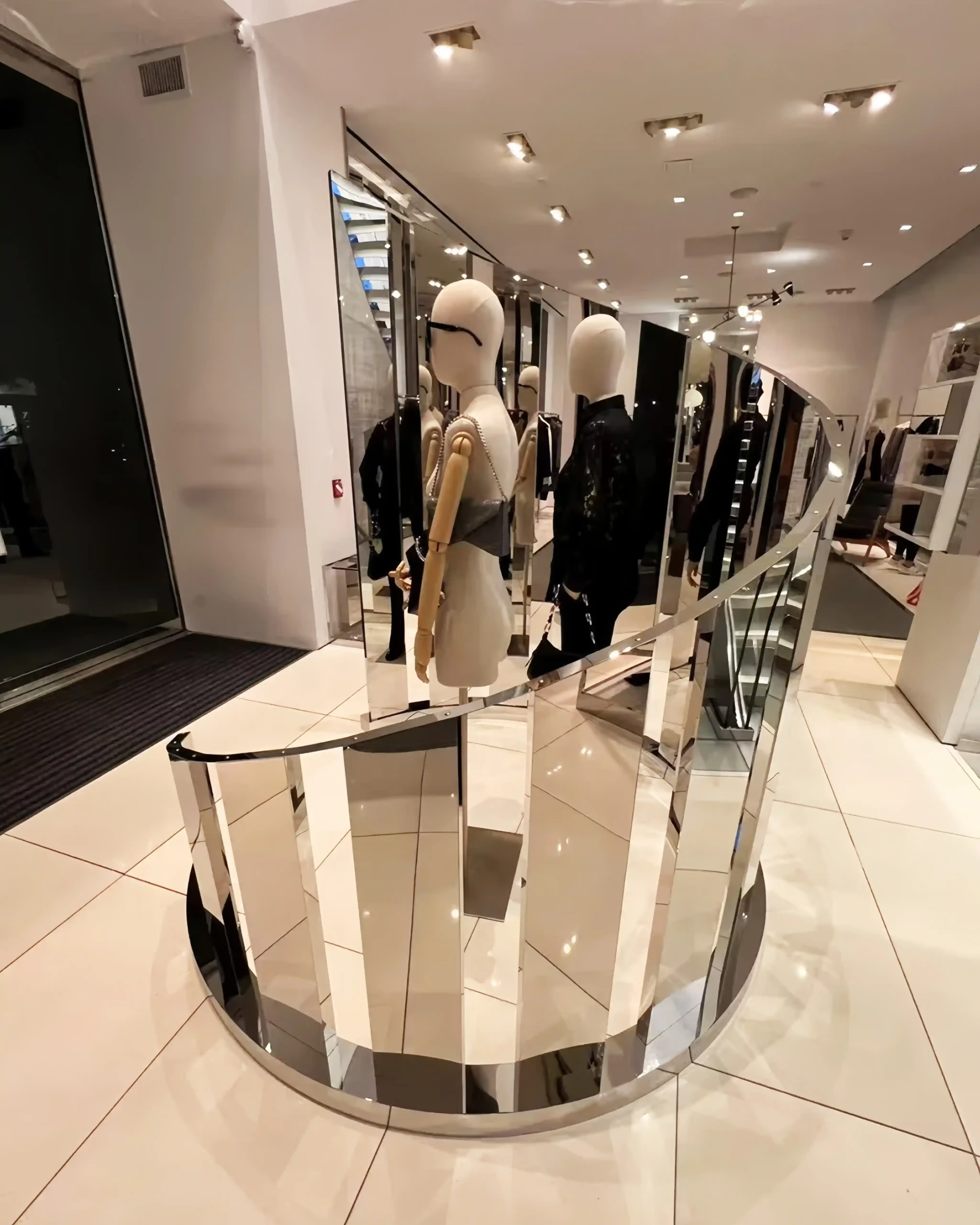

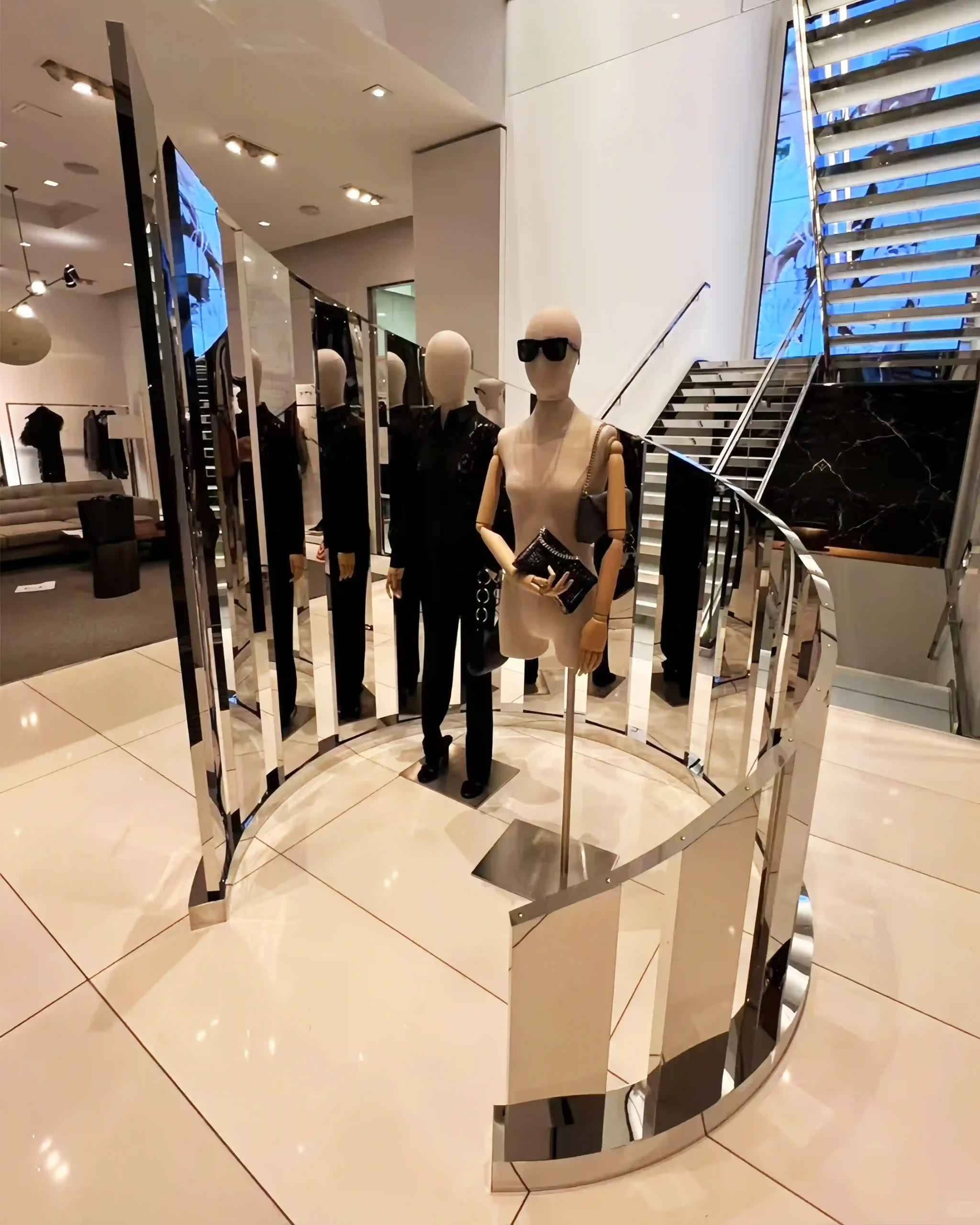

The result is a single-material window system that reads as fully custom-built for every store, even though it is engineered from one repeatable fixture concept. Each fence panel and podium is drawn to its own window’s dimensions, mirror-finished to a flawless standard, and shipped individually packed for its destination store — turning a minimalist material choice into a scalable, store-by-store rollout.

Beyond the fabrication itself, the program demonstrates full-service capability end to end: from technical drawing and dimensional fitting for each unique window, through zero-defect mirror polishing, to individualized packing and logistics coordinated store by store for a global brand rollout.

100%
Mirror-Polish Finish, Zero Burrs
Custom
Fence Panel Size Per Window
Global
Store-by-Store Rollout & Dispatch

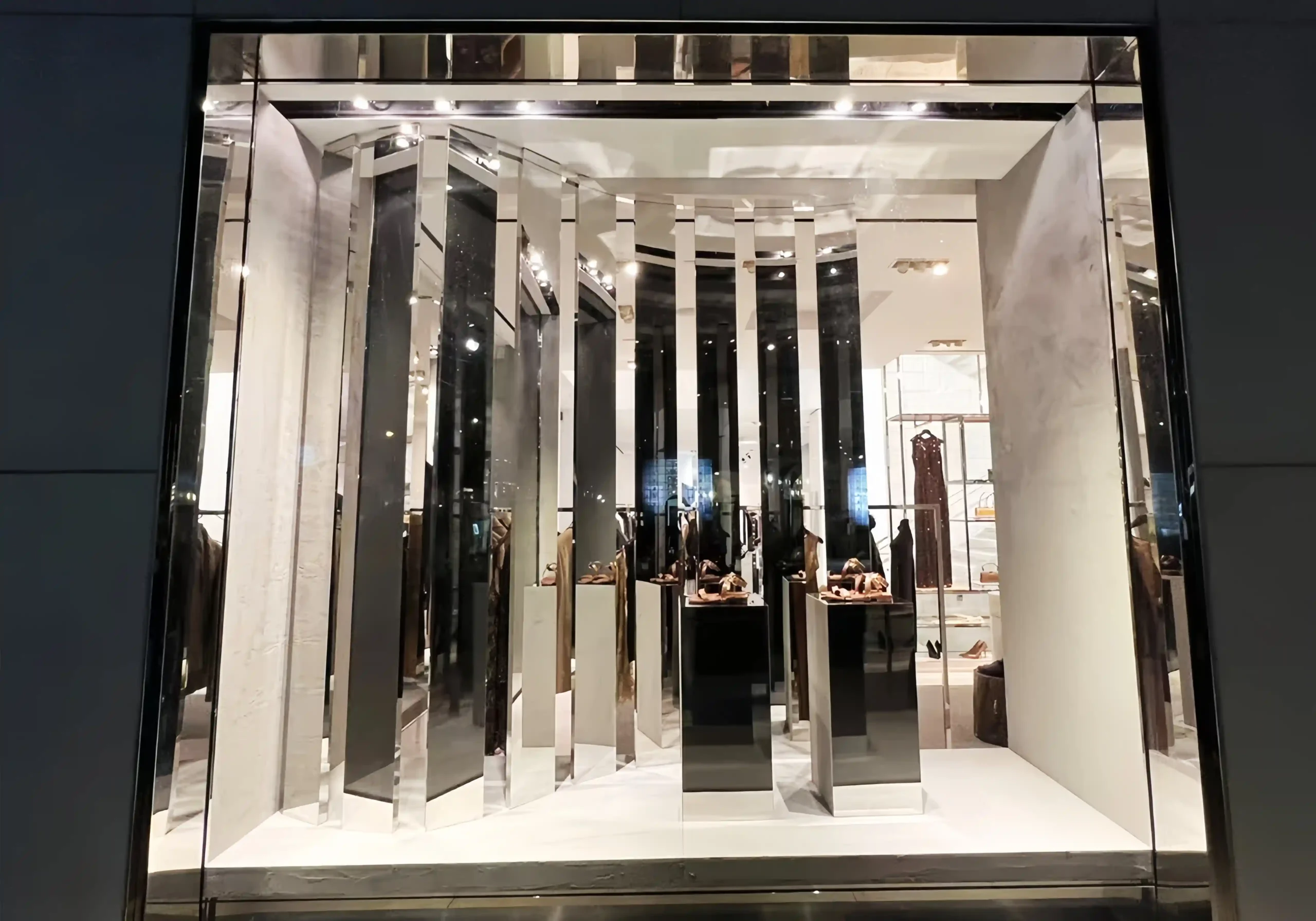

michael kors luxury mirrored ss display fixture with led lights edging
Our Process

How we execute the project

A structured workflow that keeps the brand in control from brief to delivery.

01

Brief & Concept Alignment

References, dimensions, quantity and finish confirmed up front.

02

3D Modelling & Scale Drawing

Full renders and technical drawings shared for client sign-off before any physical work.

03

Prototype & Review

A single sample is produced and documented for feedback and approval.

04

Production & Delivery

Approved units manufactured, quality-checked and flat-packed for shipping.
